4.2.4 Database
The data tier runs RDS PostgreSQL in private data subnets (one data subnet per AZ), isolated from application subnets — database traffic is not exposed on the public Internet; credentials live in Secrets Manager; an optional bastion supports operator access.

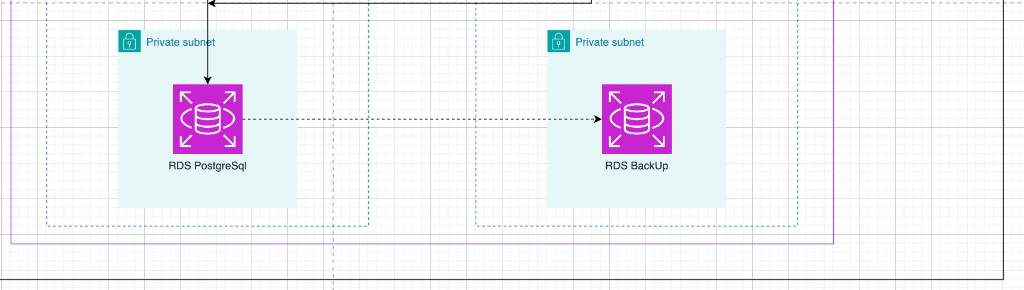

You can spread RDS across multiple AZs (for example a primary and a standby / backup across private subnets as in the diagram) to improve availability (HA) and fault tolerance. In development, a single instance is common to optimize cost; production can enable Multi-AZ / standby per your operational needs.
RDS PostgreSQL
Role: Primary relational store for the NestJS / Prisma backend; instances sit in private data subnets with Postgres reachable only inside the VPC (module rds).
Why we chose it: PostgreSQL fits relational data and Prisma; RDS reduces undifferentiated ops (patching, backups baseline) versus self-managed Postgres on EC2.
RDS Security Group (data-tier firewall)
Role: Security group attached to RDS (for example the …-rds-sg name from security_groups): ingress TCP 5432 only from the ECS task security group; optional bastion path when bastion-to-RDS access is enabled.
Why we chose it: Avoids opening Postgres to 0.0.0.0/0; only the application tier (and optionally a jump host) may reach the database — smaller attack surface.
Secrets Manager (DB password)
Role: Holds the RDS master password as a secret for wiring into the app/Lambda via IAM instead of hard-coding (module db_password_secret when create_rds).
Why we chose it: Keeps secrets out of Git and plain env files; rotation and access policy are AWS-native.
Bastion (optional)
Role: EC2 jump-style host (typically in a public subnet pattern) for admins to reach the DB over SSM/SSH depending on configuration (module bastion).
Why we chose it: Direct DB troubleshooting without publishing RDS publicly; can stay off in dev to save cost.
Tables (Prisma / PostgreSQL)
Physical table names follow Prisma mappings in SpendWiseApp/backend/prisma/schema.prisma (@@map):
| Table (PostgreSQL) | Main role |
|---|---|
| users | Application users; Cognito link (cognito_sub), unique email. |
| wallets | Per-user wallets; balance and currency (default VND). |
| categories | Income / expense / transfer categories per user; used by transactions and budgets. |
| transactions | Money movements (income/expense/transfer), amount, source/target wallets, category, date; optional note. |
| budgets | Monthly/yearly budgets per user (per category or overall). |
| tags | User-defined labels; many-to-many with transactions. |
| transaction_tags | Join table transactions ↔ tags. |
| goals | Savings goals (name, optional description, target / current, deadline; notification_sent flag). |
| recurring_transactions | Recurring entries (interval DAILY/WEEKLY/MONTHLY/YEARLY, wallet, optional category, next_date, is_active). |
| notifications | In-app notifications (NotificationType, message, is_read). |
