4.2.3 Backend and runtime platform

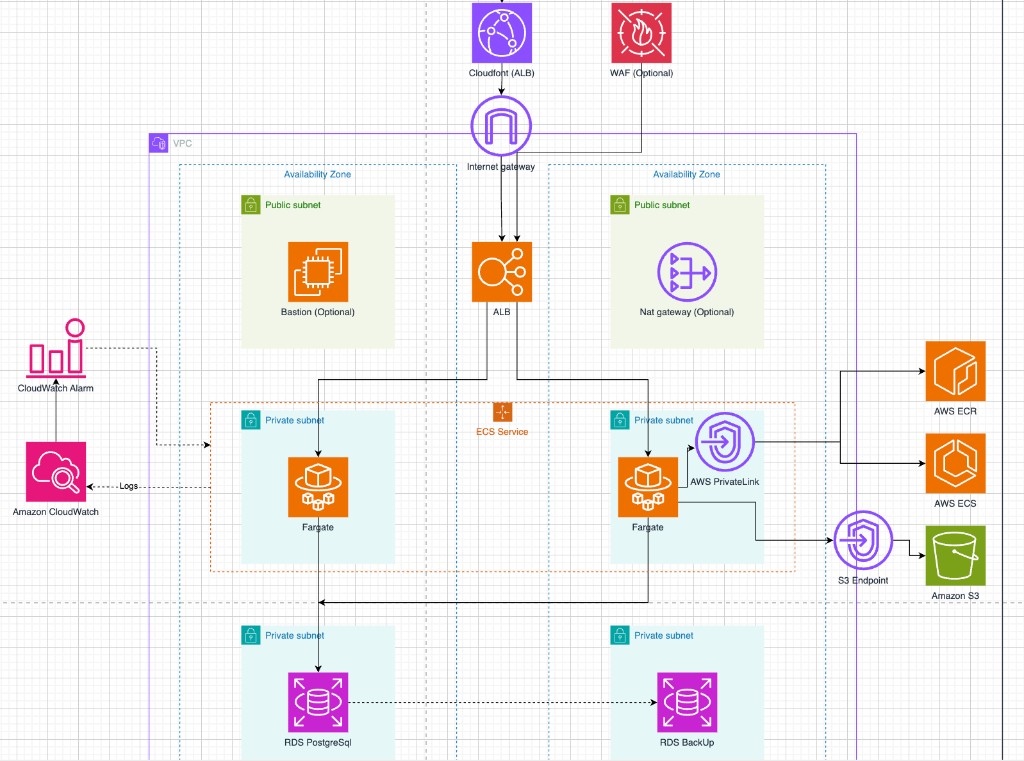

This section covers API ingress and the NestJS backend runtime in SpendWiseApp/infrastructure: root Terraform lives in environments/dev/main.tf (and environments/prod/main.tf follows the same module layout); each block is under modules/.
Network foundation: The vpc and security_groups modules provide subnets (public / private app / private data) and security groups for the ALB, ECS, RDS, and bastion — details in 4.2.1.
Application Load Balancer
Role: The ALB sits on public subnets with HTTP/HTTPS listeners (HTTPS when alb_acm_certificate_arn is set) and a target group pointing at the backend container port. It is the sole Internet-facing entry to the container service.
Why we chose it: Layer-7 load balancing, health checks, and clean integration with ECS auto scaling on ALBRequestCountPerTarget — a natural fit for an HTTP NestJS API behind a reverse proxy.
Amazon CloudFront (API — optional)
Role: When enable_api_cloudfront is true, the cloudfront_api module places CloudFront in front of the ALB; the API is reachable at an HTTPS URL such as https://dxxx.cloudfront.net using CloudFront’s default certificate, so browsers can call the API over HTTPS without requiring ACM/custom domains on the ALB — reducing mixed-content issues when the Amplify SPA is served over HTTPS.
Why we chose it: Fast HTTPS for the API URL in lab/dev setups; frontend_api_url in main.tf picks this URL or the ALB-only URL (frontend_api_url_alb_only) so NEXT_PUBLIC_API_URL matches how clients call the API.
AWS WAF (optional)
Role: When enable_waf is true, waf_alb attaches a WAFv2 Web ACL to the ALB ARN, filtering requests per the module’s rule configuration.
Why we chose it: Adds protection in front of the application; optional CloudWatch metrics via waf_enable_cloudwatch_metrics.
Amazon Elastic Container Registry
Role: ECR stores the NestJS backend image; ECS tasks pull from within the VPC.
Why we chose it: A private registry in the account with IAM control and internal pulls — no reliance on a public registry for production images.
Amazon ECS on Fargate
Role: The ecs module runs a Fargate cluster on private_app subnets, depends_on the ALB so listeners exist first; registers tasks with the ALB target group; locals.ecs_backend_environment includes DATABASE_URL when RDS is enabled, variables from terraform.tfvars, COGNITO_*, and CORS_ORIGIN aligned with the Amplify domain. Auto scaling tracks requests per target.
Why we chose it: No EC2 fleet to manage for workers; fits stateless APIs and scales with ALB load.
Amazon RDS and AWS Secrets Manager
Role: RDS provisions PostgreSQL in private_data subnets when create_rds is true. db_password_secret stores the database password in Secrets Manager when RDS is used (recovery window from variables). The Cognito PostConfirmation Lambda writes users to the database when RDS is enabled — see 4.2.2 for the broader SPA/auth flow.
Why we chose it: Managed databases and secrets separated from plain terraform.tfvars for production-oriented setups.
Amazon CloudWatch
Role: monitoring creates the log group; its name is passed into ecs so containers write stdout/stderr there.
Why we chose it: Centralized logging and a path to metrics and alarms for backend operations and troubleshooting.
Bastion (optional)
Role: When create_bastion is true, bastion provisions an EC2 instance in a public subnet, reachable via SSM — commonly used for port forwarding to RDS during migrations or debugging.
Why we chose it: Keeps Postgres off the public Internet while allowing controlled access.
Operational commands and outputs: 4.3.3 Deploy backend.
