Proposal
Proposal for Deploying SpendWiseApp on AWS
1. Project Overview
SpendWiseApp is a full-stack personal expense management web application that helps users track, analyze, and control personal finance in a practical and visual way.
The application is deployed on AWS Cloud to improve flexibility, reliability, and data safety.
2. Problems and Solution
Current Problems
For a personal finance application, user data sensitivity and system stability are critical. If deployed on a single server or fragmented self-managed infrastructure, common issues include:
- Financial data loss risk due to manual backup and inconsistent recovery procedures.
- Usage spikes (especially at month start/end) causing slow responses, congestion, and outages.
- Direct server patching/upgrades leading to configuration drift and operational mistakes.
- Lack of centralized observability, increasing incident detection and recovery time.
- Weak security posture when access control and infrastructure policy are not standardized.
Solution
To address these issues, SpendWiseApp adopts an AWS cloud architecture:
- Modern frontend: Next.js hosted and deployed on AWS Amplify.
- Backend service: NestJS deployed on AWS ECS Fargate.
- Network foundation: VPC-based architecture with public/private segmentation and ALB traffic distribution.

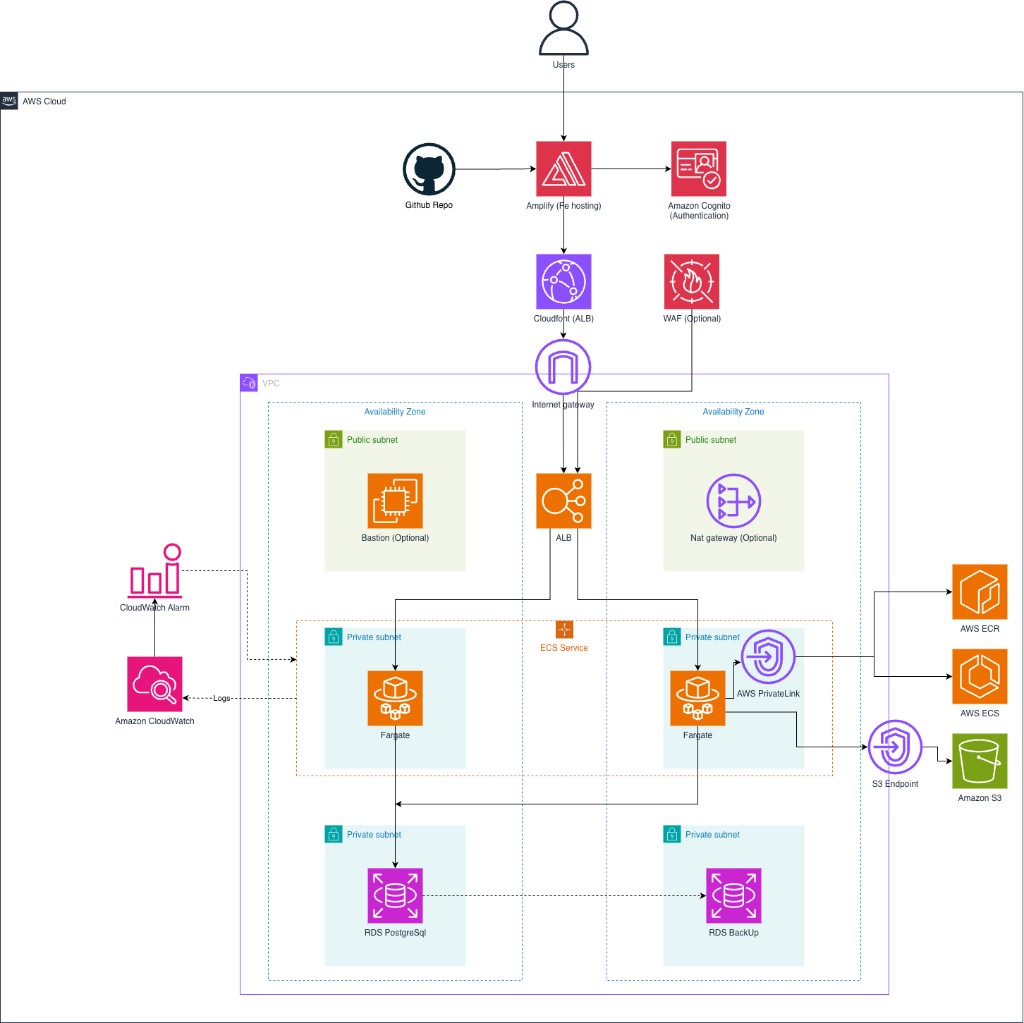

3. Solution Architecture
The architecture follows a practical 3-tier cloud model.
AWS Services
| Service | Role in SpendWise |
|---|---|
| Amazon VPC | Private network with public/private subnets across AZs for access/data isolation. |
| NAT Gateway | Enables outbound internet access from private subnets when needed. |
| Security Group | Firewall policy for ALB, ECS, RDS, bastion, and VPC endpoints. |
| Application Load Balancer | Internet entry point; load balancing and routing to ECS backend. |
| Amazon ECS (Fargate) | Runs NestJS backend containers without EC2 management. |
| Amazon ECR | Container image registry for backend deployments. |
| VPC Endpoint (Interface) | Private connectivity to ECR API, ECR DKR, CloudWatch Logs, and Cognito IDP. |
| VPC Endpoint (Gateway — S3) | Private S3 access path (e.g., image layer pull flows). |
| Amazon Cognito | User pool/app client for sign-up, login, and account confirmation. |
| AWS Lambda (Cognito trigger) | PostConfirmation processing when RDS integration is enabled. |
| Amazon RDS (PostgreSQL) | Relational database in private network for finance data. |
| AWS Amplify | Frontend build and hosting pipeline from Git source. |
| Amazon CloudFront | CDN in front of the ALB; accelerates delivery to users and terminates HTTPS before traffic reaches the load balancer. |
| AWS WAF | Web protection against common attacks (SQLi/XSS/bot traffic) at edge/API entry. |
| AWS Secrets Manager (SM) | Secure storage for secret keys, tokens, and DB credentials. |
| Amazon EC2 (Bastion) | Controlled jump host for DB operations via SSM/port forwarding. |
| Amazon CloudWatch | Centralized logs, metrics, alarms, and operational monitoring. |
4. Timeline (8 weeks)
Weeks 1–2 — Foundation & network
- Week 1: Finalize functional and non-functional requirements; initialize Terraform workflow, remote state, and environment layout.
- Week 2: Stand up VPC, public/private segmentation, security groups, and baseline routing; validate network design against the target architecture.
Weeks 3–4 — Application runtime on AWS
- Week 3: Provision ALB, ECR, and ECS (Fargate); containerize and ship the NestJS backend; wire health checks and basic service rollout.
- Week 4: Integrate Cognito authentication flows; connect the Amplify-hosted frontend to the live API; smoke-test auth and core API paths end to end.
Weeks 5–6 — Data & security hardening
- Week 5: Enable RDS (PostgreSQL), Secrets Manager for credentials, and run Prisma migrations; confirm ECS-to-RDS connectivity over private subnets only.
- Week 6: Validate private networking and least-privilege paths (including VPC endpoints where applicable); configure HTTPS on the ALB (ACM) and optional edge controls (for example WAF / CloudFront) as needed.
Weeks 7–8 — Stabilization & handover
- Week 7: Run baseline performance and smoke tests; implement CloudWatch logging/metrics and lightweight alarms aligned with ECS/ALB/RDS.
- Week 8: Complete project documentation.
5. Budget
Reference monthly estimate (USD), based on current AWS pricing and SpendWise service configuration.
| AWS Service | Component / Usage | Cost (USD/month) |
|---|---|---|
| Elastic Load Balancing | Application Load Balancer (ALB + LCU) | $18 - $35 |
| Amazon ECS | Fargate (vCPU & Memory) | $9 - $25 |
| Amazon VPC | VPC Endpoints (Interface + Gateway) | $20 - $70 |
| Amazon VPC | NAT Gateway (optional) | $0 or $33 - $60 |
| Amazon RDS | PostgreSQL (small Single-AZ) | $12 - $35 |
| AWS Amplify | Frontend hosting + build | $5 - $20 |
| Amazon Cognito | MAU & auth flow | $0 - $10 |
| Amazon ECR | Image storage | $1 - $8 |
| Amazon CloudWatch | Logs / Metrics / Alarms | $3 - $15 |
| Amazon CloudFront | Distribution + data transfer (ALB origin) | $5 - $40 |
| AWS WAF | Web ACL + Rules + Requests (optional) | $0 or $8 - $25 |
| AWS Secrets Manager | Secret storage + API calls | $1 - $6 |
| Amazon EC2 | Bastion (optional) | $0 or $5 - $12 |
| Terraform (IaC) | Infrastructure provisioning through IaC definitions | No direct AWS charge |
| TOTAL AWS COST | $74 - $361 |
Cost control recommendations:
- Temporarily disable bastion when DB interactive access is not required.
- Keep only one small Single-AZ RDS instance during development.
- Reduce CloudWatch retention for low-value logs.
- Watch NAT Gateway costs closely and prefer endpoint-based private access where applicable.
6. Risks
Cost spike risk on NAT/ALB under traffic growth or misconfiguration.
Mitigation: budget alarms, weekly cost review, right-sizing.Config drift risk across frontend/backend/Cognito secrets and environment variables.
Mitigation: standardized env templates and release checklist.Database operation risk (migration, connection pool, backup quality).
Mitigation: controlled migration process, restore drills, DB monitoring.Deployment interruption risk if image/deploy automation is incomplete.
Mitigation: standardized build/push/deploy pipeline and smoke tests.Security risk from broad inbound rules or exposed credentials.
Mitigation: least-privilege policy, secure secret storage, periodic IAM/SG review.
